LOW IMPACT, HIGH PERFORMANCE
CLMBR02 provides a high-intensity cardio workout while also building strength in 86% of your muscles. Never before has one machine offered so much.
The Beauty of the workout
Dont let the beautiful award winning machine fool you. CLMBR02 is built to last and has been re-engineered to ensure it can not only deliver a workout, but take one.
LOW IMPACT, HIGH PERFORMANCE
CLMBR02 provides a high-intensity cardio workout while also building strength in 86% of your muscles. Never before has one machine offered so much.
The Beauty of the workout
Dont let the beautiful award winning machine fool you. CLMBR02 is built to last and has been re-engineered to ensure it can not only deliver a workout, but take one.
CLMBR was built to balance modern functionality, efficient workouts, and beautiful design. It fits seamlessly in your space and decor.
Requiring less than 3 sq/ft, it is designed to fit almost all indoor spaces.
Scan the QR code with your phone to view the machine in your space.
ENGINEERED TO GO ALL OUT ALL THE TIME
Handles That Move With You
The handles have a new degree of freedom that provides the user with more head clearnance while the user is climbing in a squat-focused forward leaning posture.
Performance Delivered
The simplified Center Console now has a simplified weldment that improves the overall strength of the machine.
A Stable Base For Every Workout
The pedals now only require one fastener to install and utilize a press-fit pin to increase their overall strength. The pedal itself now prevents the pedal straps from getting tangled when the pedals are rotated.

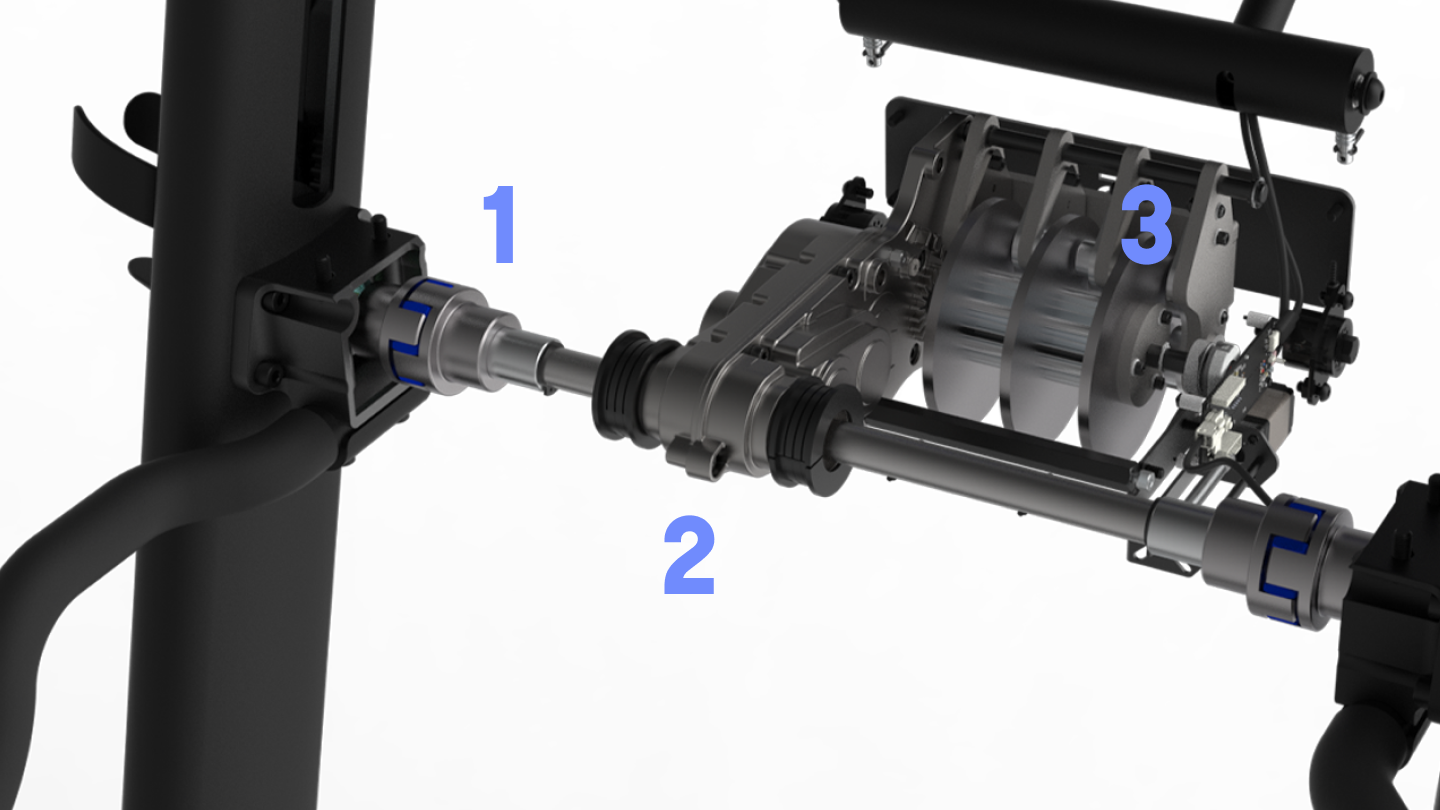

1
Jaw Coupling
New and improved coupling joint stabalizes alignment and prevents occasional swaying from damaging the machine.
2
Gearbox
The new gearbox replaced CLMBR 01’s original belts, allowing for higher power transfer between the user and breaks.
3
Eddy Current Brake
Eddy current brakes are a low maintenance frictionless resistance system. Heat sinks between the roators allow heat generated from power to dissapate quicker.
Jaw Coupling
New and improved coupling joint stabilizes alignment and prevents occasional swaying from damaging the machine.
Your gateway to an immersive workout

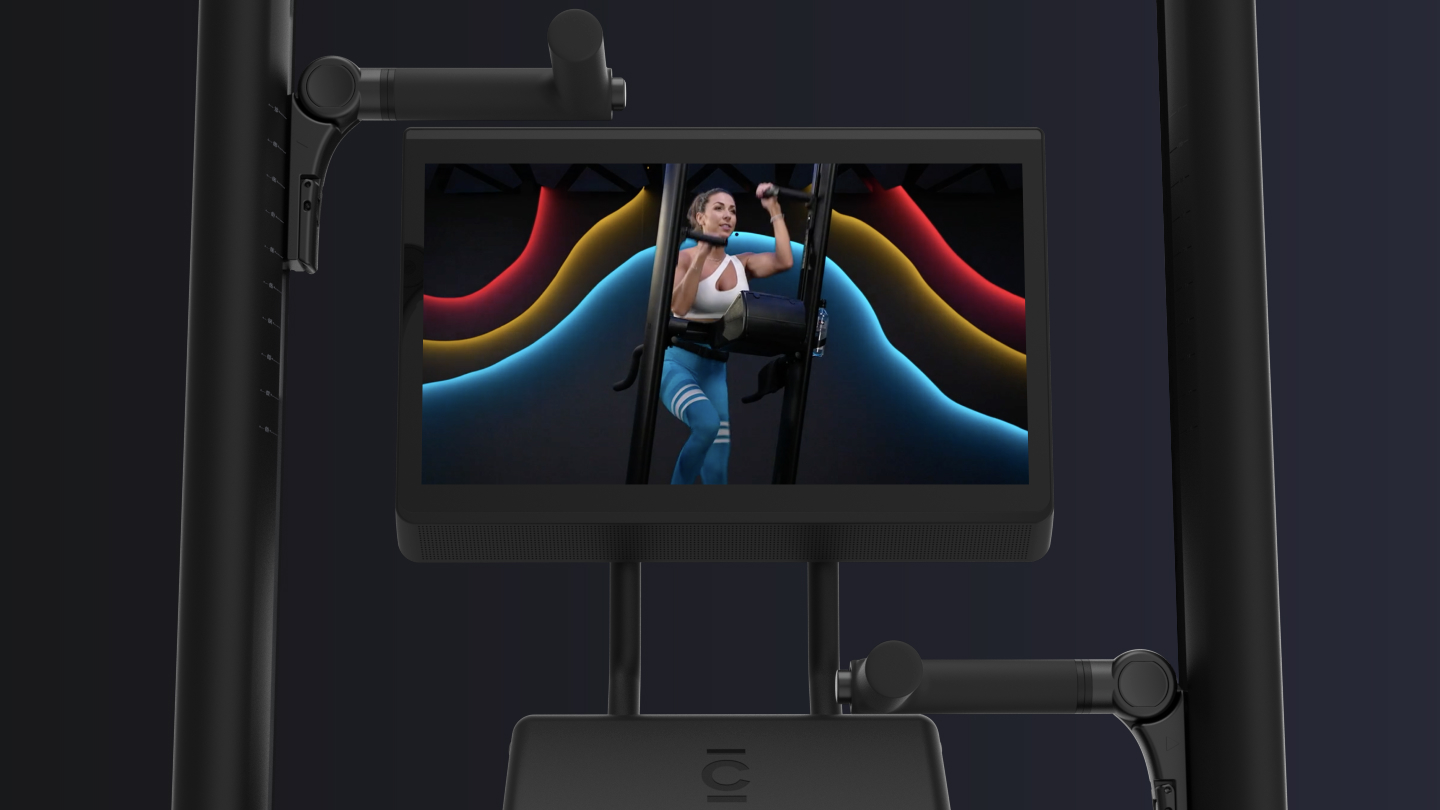

On-demand Guides
Our world-class Guides will keep you motivated throughout your climb. More importantly, keeping it fun as you elevate yourself to new heights.
Your gateway to an immersive workout
Touch Display + Dashboard
The new display has crisper graphics and high-quality optially bonded touch LED layer. An industry first, CLMBR offers a customizable home screen with over 36 widgets. Choose which real-time metrics are most important to you.
Your gateway to an immersive workout
Superior audio
The enhanced new display offers stunning visuals combined with the 2.1 surround sound system and Dolby-enhanced subwoofer provides room-filling sound.
Your gateway to an immersive workout
Robust Hardware
Our new and improved display ensures crisper graphics, responsiveness, and processing power.
Your gateway to an immersive workout
Connectivity
Every CLMBR comes fully equipped with WI-FI connectivity and modern bluetooth capabilities, allowing you to seamlessly connect to other bluetooth enabled devices like fitness trackers and headphones.
Your Gateway to an immersive workout
1/5
On-demand Guides
Our world-class Guides will keep you motivated throughout your climb. More importantly, keeping it fun as you elevate yourself to new heights.
Key Specifications
Technical Specifications
Power Source
120v
Screen
21” HD touchscreen
Power Source
120v
Screen
21” HD touchscreen
Computer
OS -
Audio
Dolby Mini Surround
Computer
OS -
Audio
Dolby Mini Surround
Drive Train
Magnetic resistance
Bluetooth
Frequency - 2.402 and 2.480 GHz Pairs with Amazon Echo Buds/AlexaPairs with heart rate monitorsPairs with CLMBR Mobile app for multi-user login
Drive Train
Magnetic resistance
Bluetooth
Frequency - 2.402 and 2.480 GHz Pairs with Amazon Echo Buds/AlexaPairs with heart rate monitorsPairs with CLMBR Mobile app for multi-user login
THE BEST JUST
GOT BETTER
Here are the new CLMBR02 features and enhancements:
Center Console: The Center Console now has a simplified weldment that improves the overall strength of the machine. The machine can now accommodate much more misalignment between the uprights with jawed couplers. The uprights now distribute the user’s load more evenly to the drive shaft using a spline profile. The resistance system now includes more magnets, allowing the Eddy Current Brake system to provide more resistance to the user during a workout.
Gearbox: The Gearbox is a fundamentally different drive system replacing the previous machine’s rubber belts entirely. The Gearbox will provide the user with a much higher level of resistance while ensuring easier maintenance and increased durability.
Handles: Every element of the CLMBR02 has been designed and engineered to deliver the perfect harmony of function and beauty. The new handles allow more customized positions to ensure they fit every user every time. To actuate the handles, the user now pulls the handle towards the center of the machine then twists or turns the handle into one of 3 desired positions.
Vision: CLMBR Vision will give users the ability to get live, and dynamic coaching/feedback while doing an off-machine workout. This will allow off machine workout feedback and rep counting. CLMBR Vision will be launching Q1 2023.
Uprights: The uprights now have larger pulley diameters to promote optimal belt performance and limit belt noise. The connecting rod within the uprights has been modified to provide more clearance to neighboring components, limiting potential causes of unwanted noise. The handle carriage now interfaces with more of the belt’s teeth, providing a stronger and more secure connection between dynamic components.
Pedals: The pedals are more than twice as strong as the pedals of the previous machine. The pedals now only require one fastener to install and utilize a press-fit pin to increase their overall strength. The pedal itself now prevents the pedal straps from getting tangled when the pedals are rotated.
Display: The new display finally offers crisper graphics and high-quality optically bonded touch LED layer. Being one of the major touchpoints of the machine the display and its quality are core to the user's experience. We can achieve this through our new display partner who is the leader in CAP Touch displays and can incorporate our planned technologies.
